Battery Type：Semi Solid State Batteries
Model：LKG-SL-12S25000
Capacity：25000mAh
Configuration：12S
Energy：1095Wh
Nominal Voltage：43.8V
Charge Cut-Off Voltage：50.4V
Max Charging Current：≤12A
Discharge Rate：3C
High-Voltage 12S UAV Power with LINKAGE Semi-Solid-State Li-ion Batteries
1095Wh Energy for VTOL, Mapping, Inspection and Long-Endurance Missions

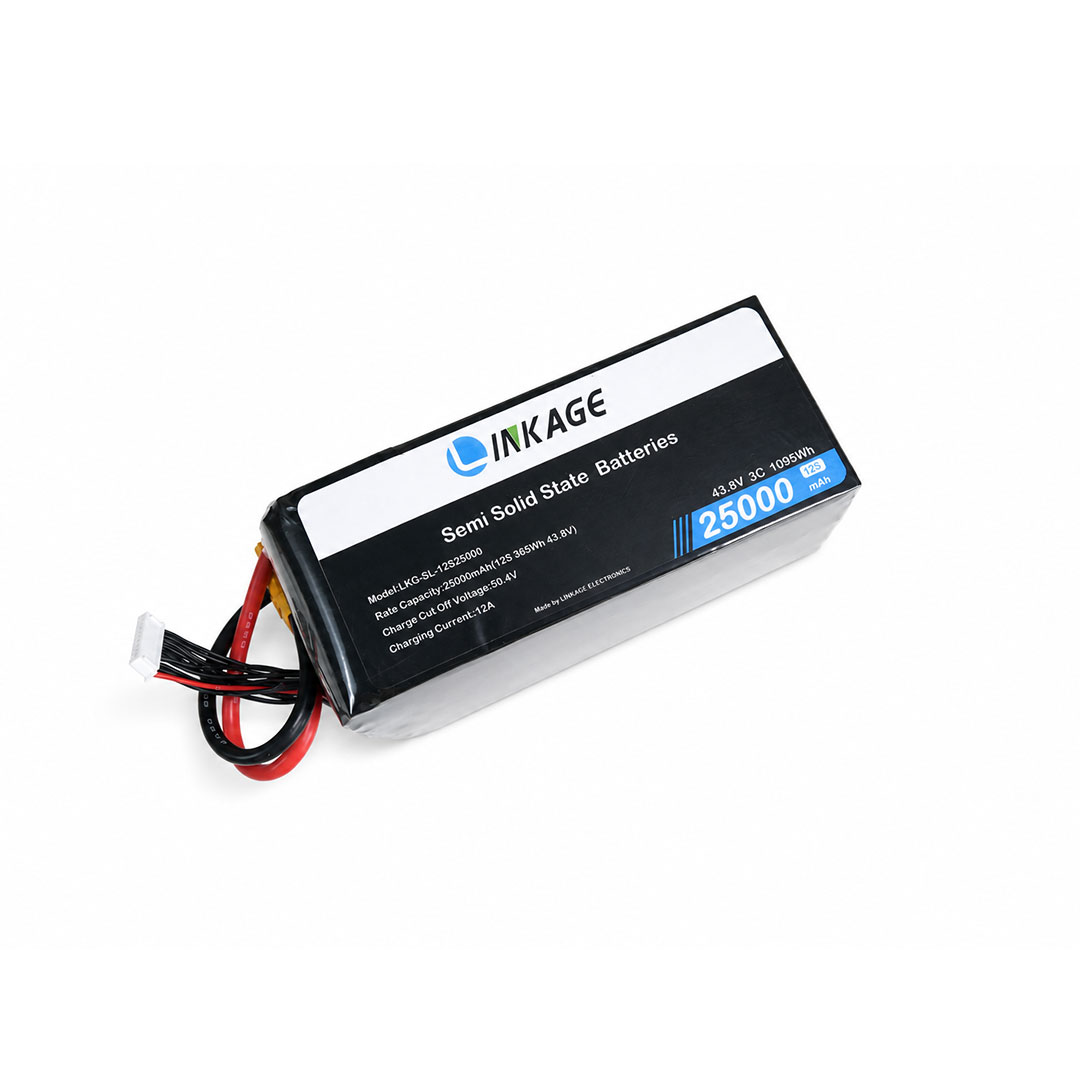

Engineered for UAV platforms built around 12S high-voltage power systems, the LINKAGE LKG-SL-12S25000 Semi-Solid-State Li-ion Battery delivers 1095Wh energy, 43.8V nominal voltage, and stable 3C output for efficient professional aerial missions.
With 25000mAh capacity, 1095Wh energy, 12S configuration, and 43.8V nominal voltage, this pack is best suited for high-voltage VTOL UAVs, long-endurance mapping drones, industrial inspection platforms, patrol aircraft, communication relay UAVs, and OEM 12S professional drone systems.
Product Specifications
LINKAGE LKG-SL-12S25000
| Specification | Details |
| Battery Type | Semi-Solid-State Li-ion Battery |
| Model | LKG-SL-12S25000 |
| Capacity | 25000mAh |
| Configuration | 12S |
| Energy | 1095Wh |
| Nominal Voltage | 43.8V |
| Charge Cutoff Voltage | 50.4V |
| Charging Current | <12A |
| Discharge Rate | 3C, suitable for stable high-voltage mission output |
| Application Type | 12S VTOL UAV / mapping / inspection / patrol / communication relay / OEM platforms |
12S Platform Positioning & Fit
The 25000mAh capacity and 1095Wh energy reserve make this battery a strong fit for aircraft that need high voltage and efficient power delivery rather than simply the largest possible amp-hour rating. The 12S architecture is especially useful for compatible UAVs that benefit from lower current draw, cleaner wiring design, and stable mission power.
Recommended platform profile:
High-Voltage Efficiency for Mission Work
The 43.8V 12S platform and 3C discharge rating are designed for stable high-voltage mission output. This battery is better suited for endurance, mapping, inspection, and patrol aircraft than for racing, stunt flight, or high-current utility platforms requiring very high burst discharge.
Typical payload combinations include:
Application Fit by Mission Type
VTOL Mapping & Surveying UAVs
Designed for high-voltage mapping platforms that need efficient route flight, stable payload power, and enough energy for professional data collection, including:
Industrial Inspection & Energy Assets
The 1095Wh energy capacity is well matched with inspection UAVs carrying thermal cameras, zoom gimbals, LiDAR, RTK modules, and onboard computing equipment over medium-to-long mission routes.
Ideal for:
Patrol, Monitoring & Emergency Support
The high-voltage 12S design supports patrol and emergency UAVs that need efficient flight, stable sensors, and predictable energy delivery for field operations.
Applications include:
Communication Relay & Remote Operations
For communication and remote operations, this 12S 25000mAh pack is better matched with UAVs carrying relay modules, cameras, and control electronics rather than heavy dispensing or cargo systems.
Applications include:
OEM Integration & High-Voltage R&D
The 12S 1095Wh battery size is practical for UAV manufacturers, integrators, and fleet operators developing high-voltage platforms that need reliable endurance without moving into oversized battery formats.
Applications include:
Why Choose LINKAGE 12S Semi-Solid-State Batteries?
| Feature | LINKAGE 12S 25000mAh Semi-Solid-State Battery | Conventional Lower-Voltage Battery |
| Voltage Architecture | 43.8V 12S platform for efficient UAV power systems | Lower voltage may require higher current for similar power |
| Energy Reserve | 25000mAh / 1095Wh for long mission routes | Limited energy for high-voltage professional UAVs |
| Output Style | 3C stable mission output for endurance and payload electronics | Less optimized for consistent long-route power |
| Safety | Semi-solid-state structure supports improved thermal stability | Less optimized for demanding field use |
| Payload Fit | Mapping cameras, LiDAR, EO/IR, RTK, relay modules | Less targeted for sensor-heavy UAV missions |
| Application Fit | VTOL, mapping, inspection, patrol, communication relay, OEM 12S platforms | Less optimized for high-voltage mission aircraft |
Core Performance Highlights
High-Voltage 12S Architecture
The 43.8V 12S platform supports compatible high-voltage UAV systems that need efficient power delivery for route flight, payload operation, and professional mission endurance.
1095Wh Energy in a 25000mAh Pack
The 25000mAh / 1095Wh configuration provides strong usable energy while keeping the pack positioned for aircraft designed around higher voltage rather than oversized low-voltage capacity.
3C Mission-Ready Output
The 3C discharge rating supports stable output for takeoff, cruise, hover, and onboard electronics on compatible aircraft, with a focus on endurance and predictable mission power.
Semi-Solid-State Structure for Professional Field Work
Semi-solid-state lithium battery technology supports improved structural and thermal stability for demanding UAV operations in commercial and industrial environments.
Payload-Friendly Power Matching
Ideal for drones carrying mapping cameras, LiDAR, EO/IR sensors, communication modules, RTK systems, and mission computers rather than extreme-current payload systems.
Recommended Platform Types
This battery is best matched with:
Not Recommended For
To ensure the best performance match, this battery is not primarily designed for:
Professional Energy Solution for High-Voltage 12S UAV Platforms
Whether you are building VTOL mapping drones, industrial inspection aircraft, patrol UAVs, communication relay platforms, high-voltage robotics, or OEM 12S drone fleets, the LINKAGE LKG-SL-12S25000 Semi-Solid-State Li-ion Battery provides the voltage architecture, energy reserve, and stable 3C output required for efficient professional missions.
Ready for OEM / ODM / Bulk Orders
Customized battery pack solutions are available for UAV manufacturers, drone integrators, fleet operators, robotics companies, and industrial equipment suppliers. Please confirm 12S voltage compatibility, 50.4V charging system, connector type, BMS requirements, ESC rating, wiring, and battery bay size before integration.
Contact Us Today
Upgrade your high-voltage UAV platform with LINKAGE 25000mAh 12S semi-solid-state lithium battery technology.
